TPWR8004PL,L1Q

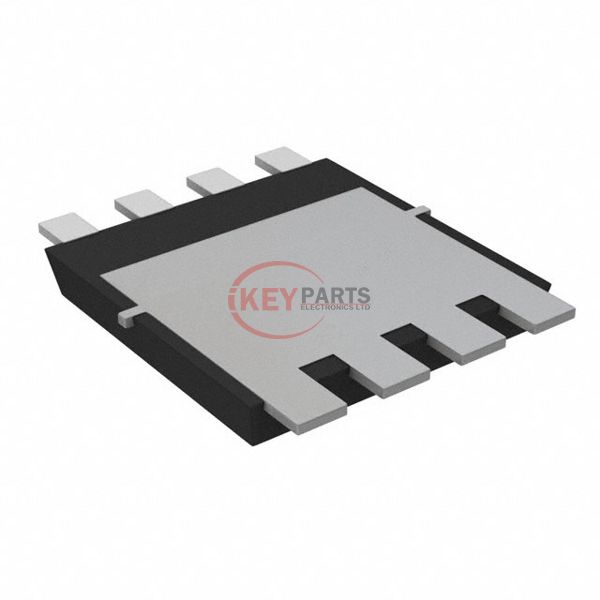

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TPWR8004PL,L1Q

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TPWR8004PL,L1Q
Description
MOSFET N-CH 40V 150A 8DSOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPWR8004PL,L1Q PDF
TPWR8004PL,L1Q Tech Specifications
SeriesU-MOSIX-H
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C150A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs103 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds9600 pF @ 20 V
FET Feature-
Power Dissipation (Max)1W (Ta), 170W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DSOP Advance
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply TPWR8004PL,L1Q, use the request quote form to request TPWR8004PL,L1Q pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPWR8004PL,L1Q. The price and lead time for TPWR8004PL,L1Q depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPWR8004PL,L1Q. We look forward to working with you to establish long-term relations of cooperation.
