CSD25402Q3A

Enlarger

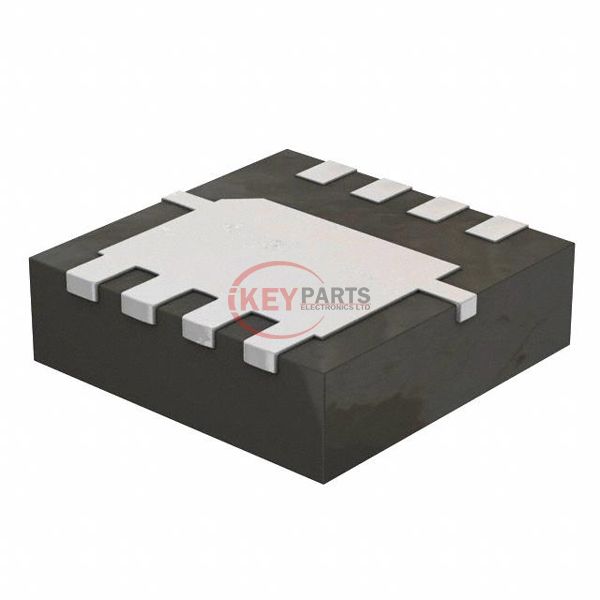

Lmages are for reference only See Product Specitications

Texas Instruments CSD25402Q3A

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD25402Q3A
Description
MOSFET P-CH 20V 76A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD25402Q3A PDF
CSD25402Q3A Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs8.9mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.7 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1790 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 69W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON (3.3x3.3)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply CSD25402Q3A, use the request quote form to request CSD25402Q3A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD25402Q3A. The price and lead time for CSD25402Q3A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD25402Q3A. We look forward to working with you to establish long-term relations of cooperation.
