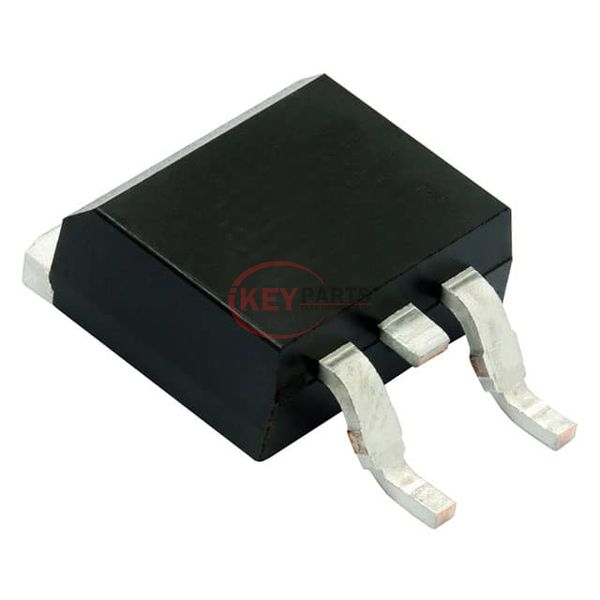

SIHB24N80AE-GE3

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SIHB24N80AE-GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SIHB24N80AE-GE3
Description
MOSFET N-CH 800V 21A D2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SIHB24N80AE-GE3 PDF
SIHB24N80AE-GE3 Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C21A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs184mOhm @ 10A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs89 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1836 pF @ 100 V
FET Feature-
Power Dissipation (Max)208W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK (TO-263)
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply SIHB24N80AE-GE3, use the request quote form to request SIHB24N80AE-GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SIHB24N80AE-GE3. The price and lead time for SIHB24N80AE-GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SIHB24N80AE-GE3. We look forward to working with you to establish long-term relations of cooperation.
