DMN1019USN-7

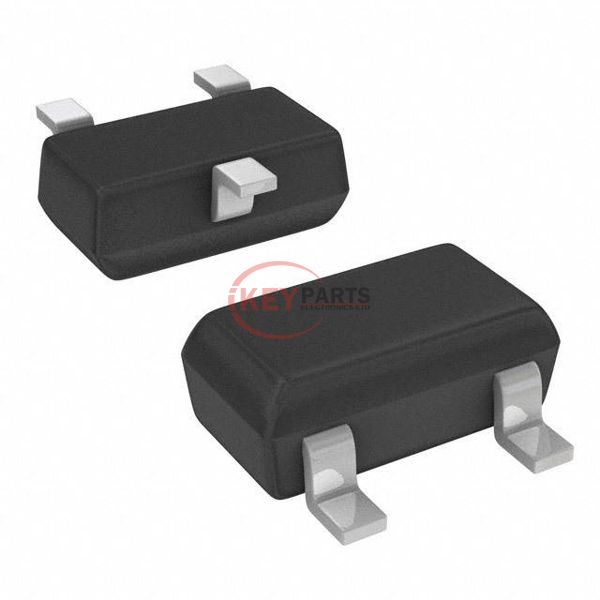

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMN1019USN-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMN1019USN-7
Description
MOSFET N-CH 12V 9.3A SC59
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMN1019USN-7 PDF
DMN1019USN-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C9.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.2V, 2.5V
Rds On (Max) @ Id, Vgs10mOhm @ 9.7A, 4.5V
Vgs(th) (Max) @ Id800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs50.6 nC @ 8 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2426 pF @ 10 V
FET Feature-
Power Dissipation (Max)680mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-59
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply DMN1019USN-7, use the request quote form to request DMN1019USN-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN1019USN-7. The price and lead time for DMN1019USN-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN1019USN-7. We look forward to working with you to establish long-term relations of cooperation.
