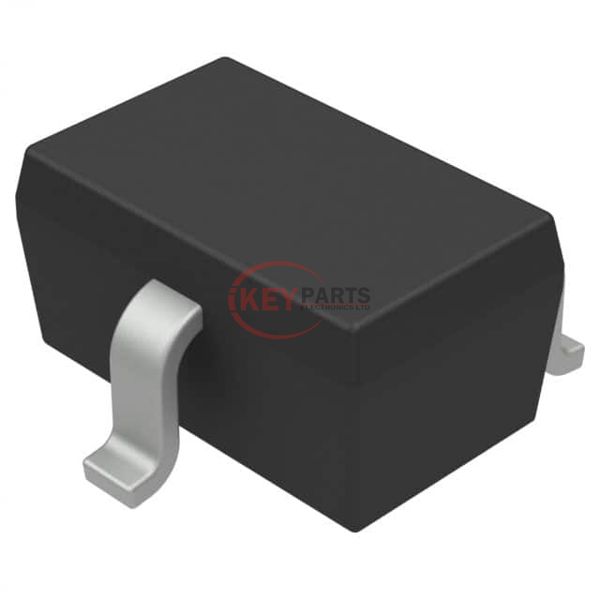

NX138BKWF

Enlarger

Lmages are for reference only See Product Specitications

Nexperia NX138BKWF

Manufacturer :
Nexperia
Mfr. Part # :
NX138BKWF
Description
MOSFET N-CHANNEL 60V 210MA SC70
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NX138BKWF PDF
NX138BKWF Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C210mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs3.5Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds20 pF @ 30 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply NX138BKWF, use the request quote form to request NX138BKWF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NX138BKWF. The price and lead time for NX138BKWF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NX138BKWF. We look forward to working with you to establish long-term relations of cooperation.
