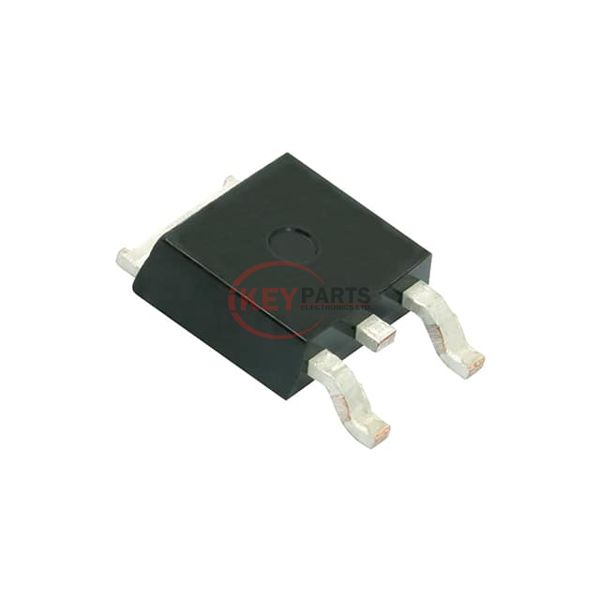

SIHD5N80AE-GE3

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SIHD5N80AE-GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SIHD5N80AE-GE3
Description
E SERIES POWER MOSFET DPAK (TO-2
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SIHD5N80AE-GE3 PDF
In Stock
702
SIHD5N80AE-GE3 Tech Specifications
SeriesE
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C4.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.35Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs16.5 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds321 pF @ 100 V
FET Feature-
Power Dissipation (Max)62.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD-PAK (TO-252AA)
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply SIHD5N80AE-GE3, use the request quote form to request SIHD5N80AE-GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SIHD5N80AE-GE3. The price and lead time for SIHD5N80AE-GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SIHD5N80AE-GE3. We look forward to working with you to establish long-term relations of cooperation.
