NX7002BKMBYL

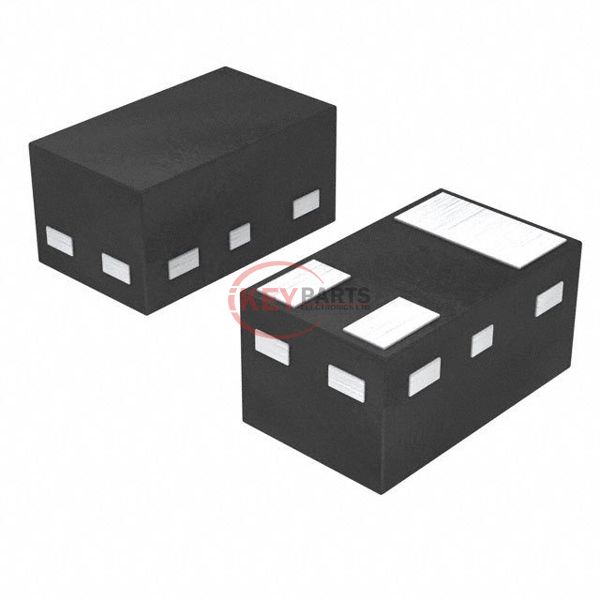

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics NX7002BKMBYL

Manufacturer :
Rochester Electronics
Mfr. Part # :
NX7002BKMBYL
Description
NX7002B - 60V, N-CHANNEL TRENCH
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NX7002BKMBYL PDF
NX7002BKMBYL Tech Specifications
SeriesTrenchMOS™
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C350mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs2.8Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds23.6 pF @ 10 V
FET Feature-
Power Dissipation (Max)350mW (Ta), 3.1W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1006B-3
Package / Case3-XFDFN
Request Quote Now
Request Quote Now

We can supply NX7002BKMBYL, use the request quote form to request NX7002BKMBYL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NX7002BKMBYL. The price and lead time for NX7002BKMBYL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NX7002BKMBYL. We look forward to working with you to establish long-term relations of cooperation.
