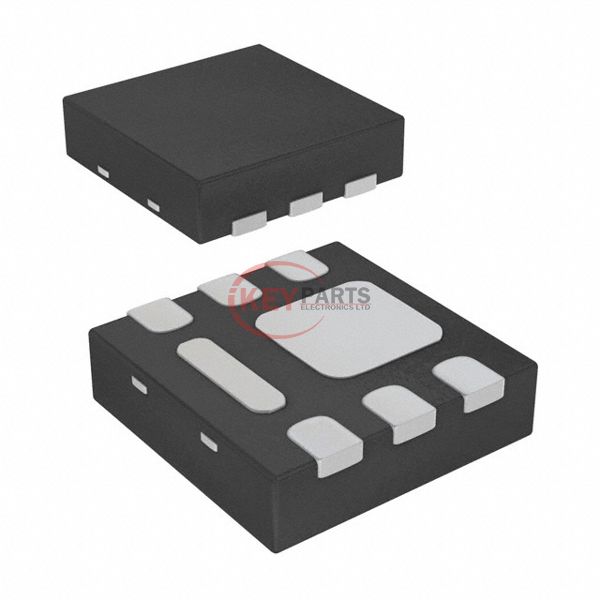

YJQ1216A-F1-1100HF

Enlarger

Lmages are for reference only See Product Specitications

YJQ1216A-F1-1100HF

Manufacturer :
Mfr. Part # :
YJQ1216A-F1-1100HF
Description
P-CH MOSFET 20V 16A DFN2020-6L-E
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
YJQ1216A-F1-1100HF PDF
In Stock
365
YJQ1216A-F1-1100HF Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs19mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs72.8 nC @ 10 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds2992 pF @ 10 V
FET Feature-
Power Dissipation (Max)18W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-DFN (2x2)
Package / Case6-UDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply YJQ1216A-F1-1100HF, use the request quote form to request YJQ1216A-F1-1100HF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number YJQ1216A-F1-1100HF. The price and lead time for YJQ1216A-F1-1100HF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# YJQ1216A-F1-1100HF. We look forward to working with you to establish long-term relations of cooperation.
