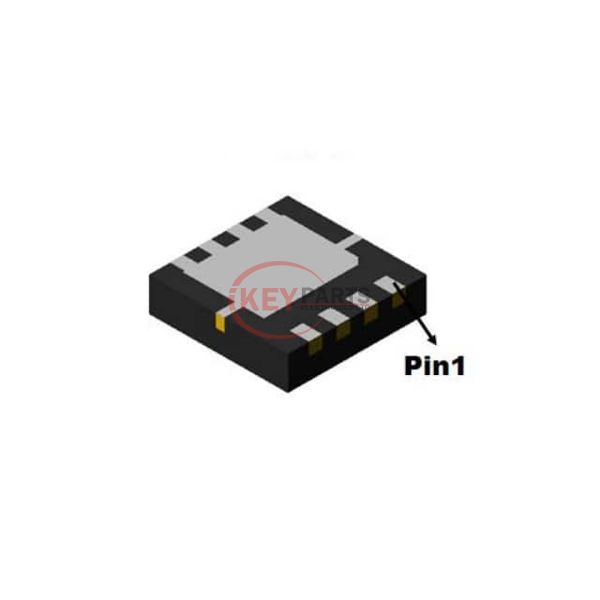

YJQ40G10A-F1-1100HF

Enlarger

Lmages are for reference only See Product Specitications

YJQ40G10A-F1-1100HF

Manufacturer :
Mfr. Part # :
YJQ40G10A-F1-1100HF
Description
N-CH MOSFET 100V 40A DFN3333-8L-
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
YJQ40G10A-F1-1100HF PDF
YJQ40G10A-F1-1100HF Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs18.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs16 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1051 pF @ 50 V
FET Feature-
Power Dissipation (Max)43W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (3.3x3.3)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply YJQ40G10A-F1-1100HF, use the request quote form to request YJQ40G10A-F1-1100HF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number YJQ40G10A-F1-1100HF. The price and lead time for YJQ40G10A-F1-1100HF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# YJQ40G10A-F1-1100HF. We look forward to working with you to establish long-term relations of cooperation.
