SQP120N06-3M5L_GE3

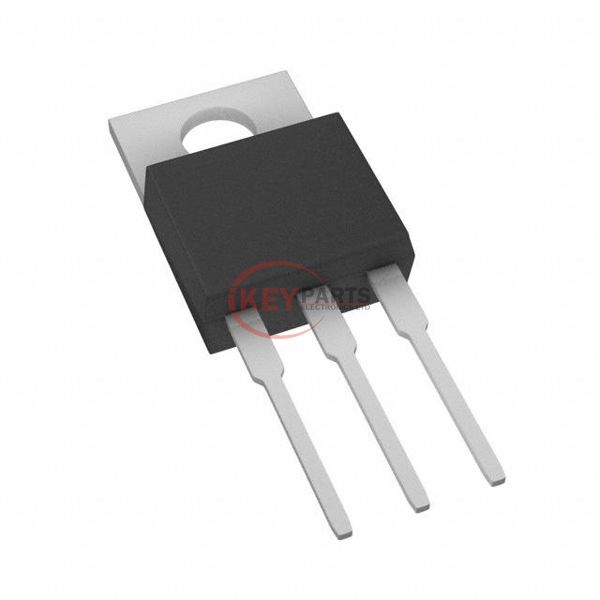

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SQP120N06-3M5L_GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SQP120N06-3M5L_GE3
Description
MOSFET N-CH 60V 120A TO220AB
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SQP120N06-3M5L_GE3 PDF
SQP120N06-3M5L_GE3 Tech Specifications
SeriesAutomotive, AEC-Q101, TrenchFET®
PackageCut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.5mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs330 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds14700 pF @ 25 V
FET Feature-
Power Dissipation (Max)250W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply SQP120N06-3M5L_GE3, use the request quote form to request SQP120N06-3M5L_GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SQP120N06-3M5L_GE3. The price and lead time for SQP120N06-3M5L_GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SQP120N06-3M5L_GE3. We look forward to working with you to establish long-term relations of cooperation.
