PMZ290UNEYL

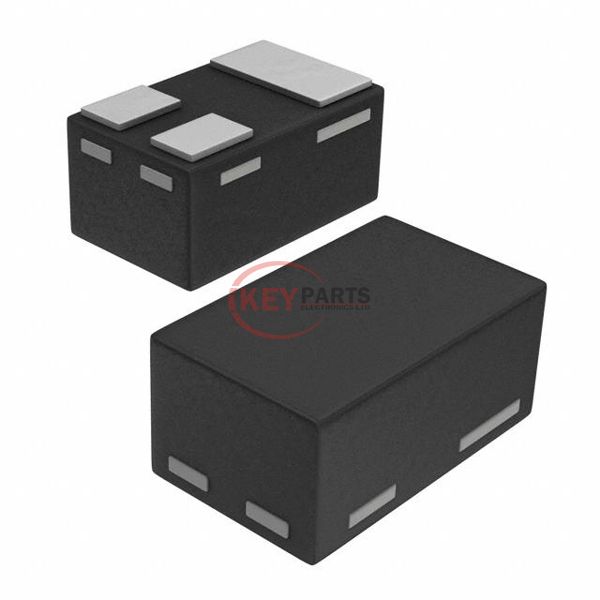

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics PMZ290UNEYL

Manufacturer :
Rochester Electronics
Mfr. Part # :
PMZ290UNEYL
Description
EFFECT TRANSISTOR, 1.2A I(D), 20
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMZ290UNEYL PDF
PMZ290UNEYL Tech Specifications
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs380mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.68 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds83 pF @ 10 V
FET Feature-
Power Dissipation (Max)360mW (Ta), 2.7W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1006-3
Package / CaseSC-101, SOT-883
Request Quote Now
Request Quote Now

We can supply PMZ290UNEYL, use the request quote form to request PMZ290UNEYL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMZ290UNEYL. The price and lead time for PMZ290UNEYL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMZ290UNEYL. We look forward to working with you to establish long-term relations of cooperation.
