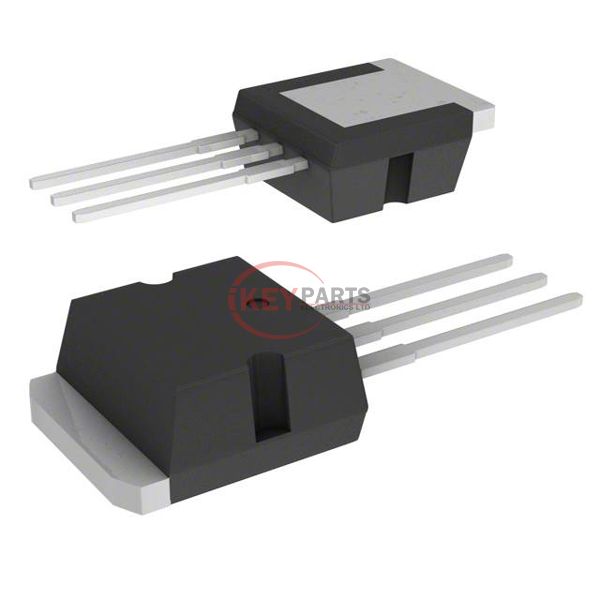

STB80NF55L-08-1

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STB80NF55L-08-1

Manufacturer :
STMicroelectronics
Mfr. Part # :
STB80NF55L-08-1
Description
MOSFET N-CH 55V 80A I2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STB80NF55L-08-1 PDF
STB80NF55L-08-1 Tech Specifications
SeriesSTripFET™ II
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)55 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs8mOhm @ 40A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs100 nC @ 4.5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds4350 pF @ 25 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI2PAK
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply STB80NF55L-08-1, use the request quote form to request STB80NF55L-08-1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STB80NF55L-08-1. The price and lead time for STB80NF55L-08-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STB80NF55L-08-1. We look forward to working with you to establish long-term relations of cooperation.
