PCP1403-TD-H

Enlarger

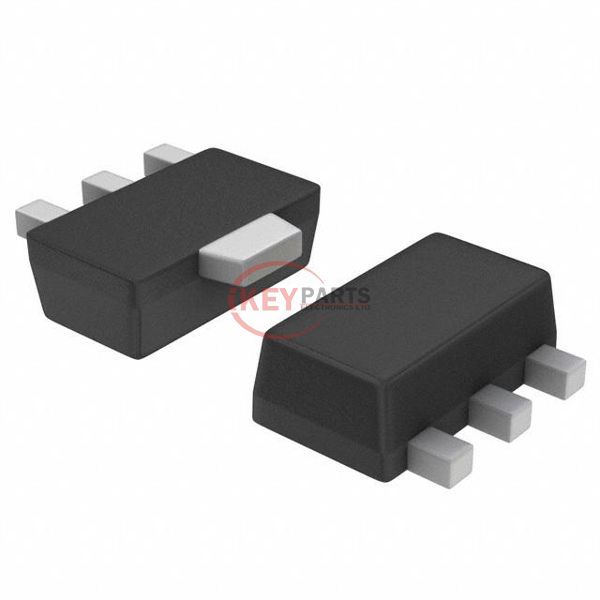

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor PCP1403-TD-H

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
PCP1403-TD-H
Description
MOSFET N-CH 60V 4.5A SOT89/PCP-1
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PCP1403-TD-H PDF
In Stock
837
PCP1403-TD-H Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs117mOhm @ 2A, 10V
Vgs(th) (Max) @ Id2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs6.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds310 pF @ 20 V
FET Feature-
Power Dissipation (Max)3.5W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-89/PCP-1
Package / CaseTO-243AA
Request Quote Now
Request Quote Now

We can supply PCP1403-TD-H, use the request quote form to request PCP1403-TD-H pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PCP1403-TD-H. The price and lead time for PCP1403-TD-H depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PCP1403-TD-H. We look forward to working with you to establish long-term relations of cooperation.
