TK1R4F04PB,LXGQ

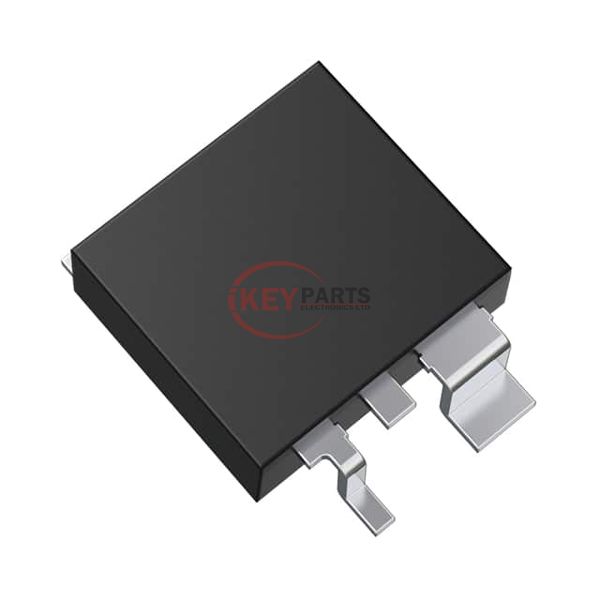

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TK1R4F04PB,LXGQ

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TK1R4F04PB,LXGQ
Description
MOSFET N-CH 40V 160A TO220SM
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TK1R4F04PB,LXGQ PDF
TK1R4F04PB,LXGQ Tech Specifications
SeriesU-MOSIX-H
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C160A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.9mOhm @ 80A, 6V
Vgs(th) (Max) @ Id3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs103 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5500 pF @ 10 V
FET Feature-
Power Dissipation (Max)205W (Tc)
Operating Temperature175°C
Mounting TypeSurface Mount
Supplier Device PackageTO-220SM(W)
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply TK1R4F04PB,LXGQ, use the request quote form to request TK1R4F04PB,LXGQ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TK1R4F04PB,LXGQ. The price and lead time for TK1R4F04PB,LXGQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TK1R4F04PB,LXGQ. We look forward to working with you to establish long-term relations of cooperation.
