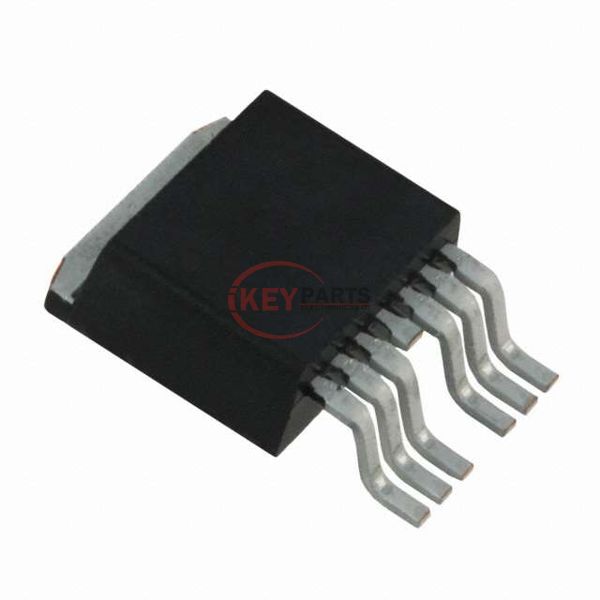

IPB180N04S4H0ATMA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPB180N04S4H0ATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPB180N04S4H0ATMA1
Description
MOSFET N-CH 40V 180A TO263-7-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPB180N04S4H0ATMA1 PDF
In Stock
992
IPB180N04S4H0ATMA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.1mOhm @ 100A, 10V
Vgs(th) (Max) @ Id4V @ 180µA
Gate Charge (Qg) (Max) @ Vgs225 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds17940 pF @ 25 V
FET Feature-
Power Dissipation (Max)250W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-7-3
Package / CaseTO-263-7, D²Pak (6 Leads + Tab)
Request Quote Now
Request Quote Now

We can supply IPB180N04S4H0ATMA1, use the request quote form to request IPB180N04S4H0ATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPB180N04S4H0ATMA1. The price and lead time for IPB180N04S4H0ATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPB180N04S4H0ATMA1. We look forward to working with you to establish long-term relations of cooperation.
