AO7414

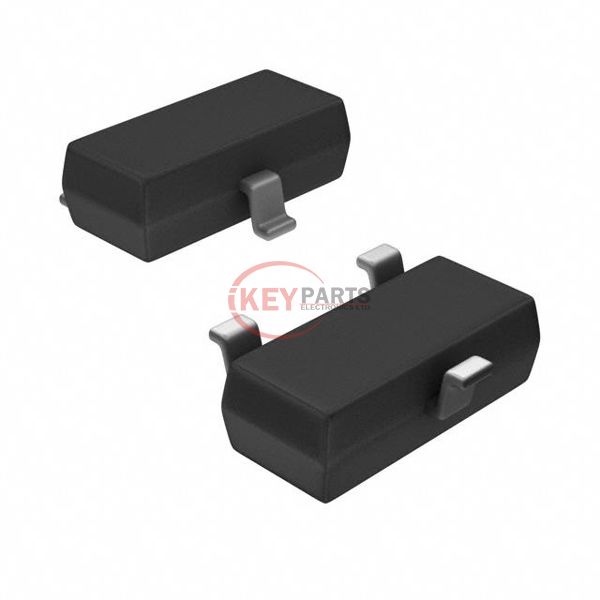

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AO7414

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AO7414
Description
MOSFET N-CH 20V 2A SC70-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AO7414 PDF
In Stock
381
AO7414 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs62mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.8 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds320 pF @ 10 V
FET Feature-
Power Dissipation (Max)350mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70-3
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply AO7414, use the request quote form to request AO7414 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AO7414. The price and lead time for AO7414 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AO7414. We look forward to working with you to establish long-term relations of cooperation.
