FDMC3020DC

Enlarger

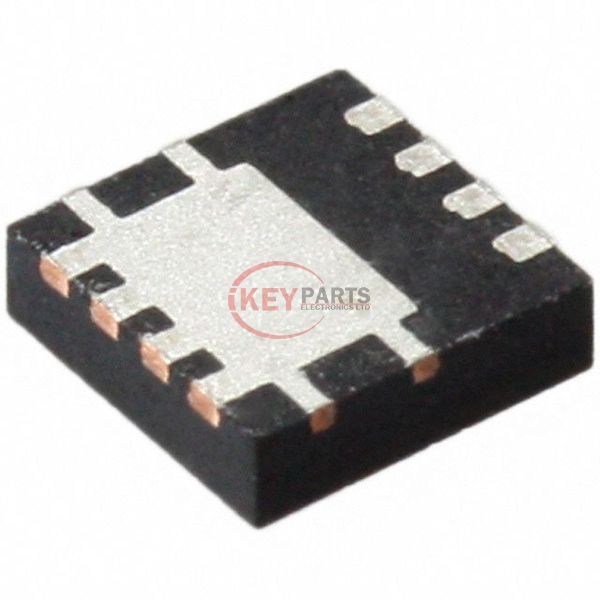

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDMC3020DC

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDMC3020DC
Description
MOSFET N-CH 30V 17A/40A DLCOOL33
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDMC3020DC PDF
In Stock
293
FDMC3020DC Tech Specifications
SeriesDual Cool™, PowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C17A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6.25mOhm @ 12A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs23 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1385 pF @ 15 V
FET Feature-
Power Dissipation (Max)3W (Ta), 50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDual Cool ™ 33
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply FDMC3020DC, use the request quote form to request FDMC3020DC pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMC3020DC. The price and lead time for FDMC3020DC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMC3020DC. We look forward to working with you to establish long-term relations of cooperation.
