CMS70N04H8-HF

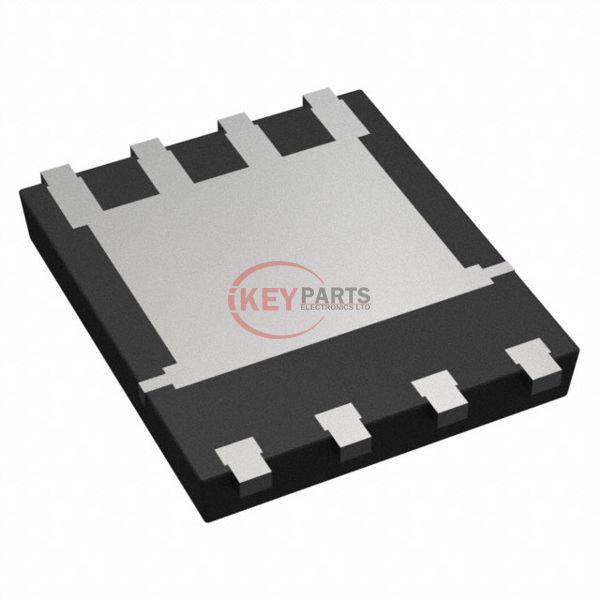

Enlarger

Lmages are for reference only See Product Specitications

Comchip Technology CMS70N04H8-HF

Manufacturer :
Comchip Technology
Mfr. Part # :
CMS70N04H8-HF
Description
MOSFET N-CH 40V 70A DFN5X6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CMS70N04H8-HF PDF
In Stock
2498
CMS70N04H8-HF Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs8.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs19.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1278 pF @ 25 V
FET Feature-
Power Dissipation (Max)2W (Ta), 72.3W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN5x6 (PR-PAK)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply CMS70N04H8-HF, use the request quote form to request CMS70N04H8-HF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CMS70N04H8-HF. The price and lead time for CMS70N04H8-HF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CMS70N04H8-HF. We look forward to working with you to establish long-term relations of cooperation.
