IPP120P04P4L03AKSA2

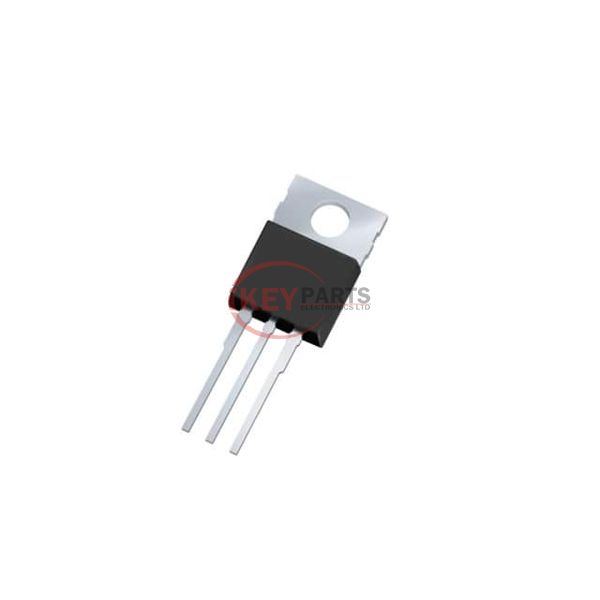

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPP120P04P4L03AKSA2

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPP120P04P4L03AKSA2
Description
MOSFET P-CH 40V 120A TO220-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPP120P04P4L03AKSA2 PDF
In Stock
139
IPP120P04P4L03AKSA2 Tech Specifications
SeriesOptiMOS®-P2
PackageTube
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id2.2V @ 340µA
Gate Charge (Qg) (Max) @ Vgs234 nC @ 10 V
Vgs (Max)+5V, -16V
Input Capacitance (Ciss) (Max) @ Vds15000 pF @ 25 V
FET Feature-
Power Dissipation (Max)136W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO220-3-1
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply IPP120P04P4L03AKSA2, use the request quote form to request IPP120P04P4L03AKSA2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPP120P04P4L03AKSA2. The price and lead time for IPP120P04P4L03AKSA2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPP120P04P4L03AKSA2. We look forward to working with you to establish long-term relations of cooperation.
