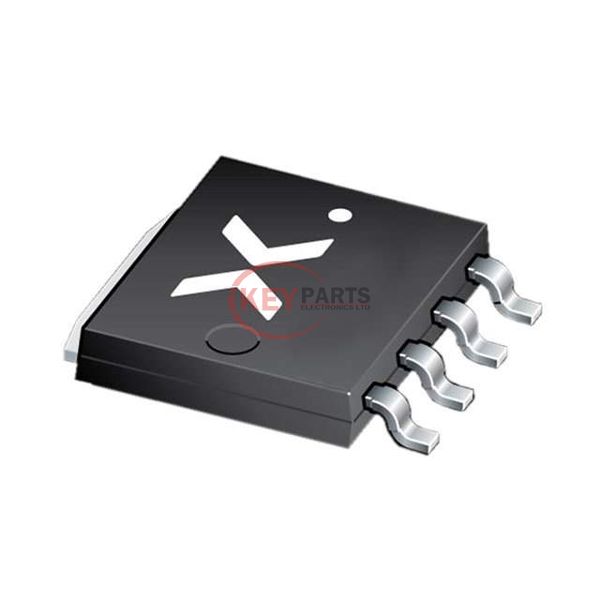

PSMN1R3-30YL,115

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PSMN1R3-30YL,115

Manufacturer :
Nexperia
Mfr. Part # :
PSMN1R3-30YL,115
Description
MOSFET N-CH 30V 100A LFPAK56
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PSMN1R3-30YL,115 PDF
PSMN1R3-30YL,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.3mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs100 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6227 pF @ 12 V
FET Feature-
Power Dissipation (Max)121W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSOT-1023, 4-LFPAK
Request Quote Now
Request Quote Now

We can supply PSMN1R3-30YL,115, use the request quote form to request PSMN1R3-30YL,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMN1R3-30YL,115. The price and lead time for PSMN1R3-30YL,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PSMN1R3-30YL,115. We look forward to working with you to establish long-term relations of cooperation.
