IRF7809AVTRPBF-1

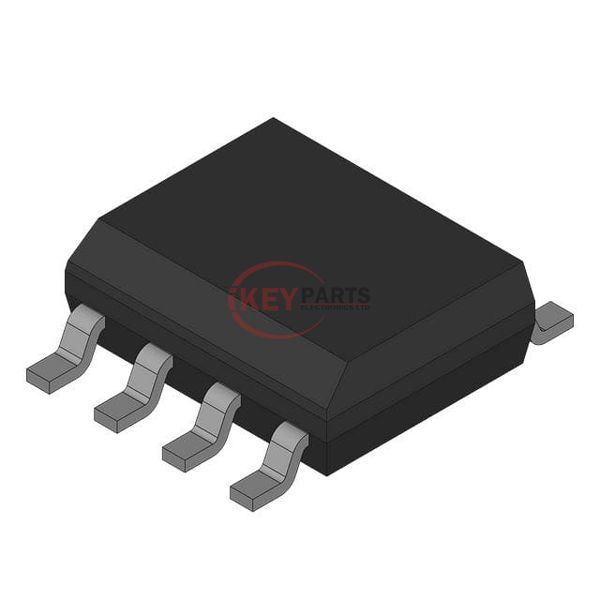

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics IRF7809AVTRPBF-1

Manufacturer :
Rochester Electronics
Mfr. Part # :
IRF7809AVTRPBF-1
Description
MOSFET N-CH 30V 13.3A 8SO
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF7809AVTRPBF-1 PDF
IRF7809AVTRPBF-1 Tech Specifications
SeriesHEXFET®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C13.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V
Rds On (Max) @ Id, Vgs9mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs62 nC @ 5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds3.78 pF @ 16 V
FET Feature-
Power Dissipation (Max)2.5W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SO
Package / Case8-SOIC (0.154", 3.90mm Width)
Request Quote Now
Request Quote Now

We can supply IRF7809AVTRPBF-1, use the request quote form to request IRF7809AVTRPBF-1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF7809AVTRPBF-1. The price and lead time for IRF7809AVTRPBF-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF7809AVTRPBF-1. We look forward to working with you to establish long-term relations of cooperation.
