TPH3202LD

Enlarger

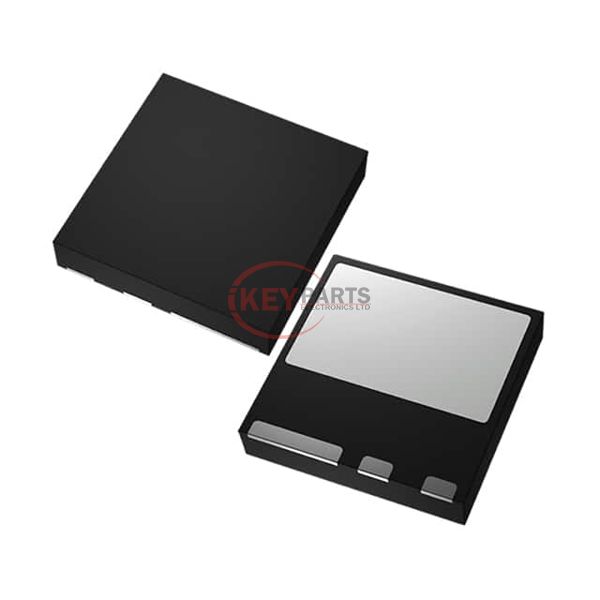

Lmages are for reference only See Product Specitications

Transphorm TPH3202LD

Manufacturer :
Transphorm
Mfr. Part # :
TPH3202LD
Description
GANFET N-CH 600V 9A 4PQFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPH3202LD PDF
In Stock
586
TPH3202LD Tech Specifications
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs350mOhm @ 5.5A, 8V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.3 nC @ 4.5 V
Vgs (Max)±18V
Input Capacitance (Ciss) (Max) @ Vds760 pF @ 480 V
FET Feature-
Power Dissipation (Max)65W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-PQFN (8x8)
Package / Case4-PowerDFN
Request Quote Now
Request Quote Now

We can supply TPH3202LD, use the request quote form to request TPH3202LD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPH3202LD. The price and lead time for TPH3202LD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPH3202LD. We look forward to working with you to establish long-term relations of cooperation.
