SISH114ADN-T1-GE3

Enlarger

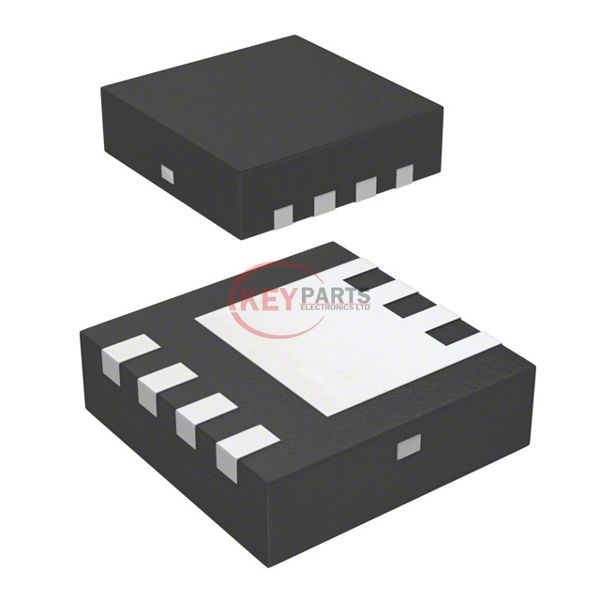

Lmages are for reference only See Product Specitications

Vishay / Siliconix SISH114ADN-T1-GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SISH114ADN-T1-GE3
Description
MOSFET N-CH 30V 18A/35A PPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SISH114ADN-T1-GE3 PDF
In Stock
6050
SISH114ADN-T1-GE3 Tech Specifications
SeriesTrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C18A (Ta), 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.5mOhm @ 18A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs32 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1230 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.7W (Ta), 39W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® 1212-8SH
Package / CasePowerPAK® 1212-8SH
Request Quote Now
Request Quote Now

We can supply SISH114ADN-T1-GE3, use the request quote form to request SISH114ADN-T1-GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SISH114ADN-T1-GE3. The price and lead time for SISH114ADN-T1-GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SISH114ADN-T1-GE3. We look forward to working with you to establish long-term relations of cooperation.
