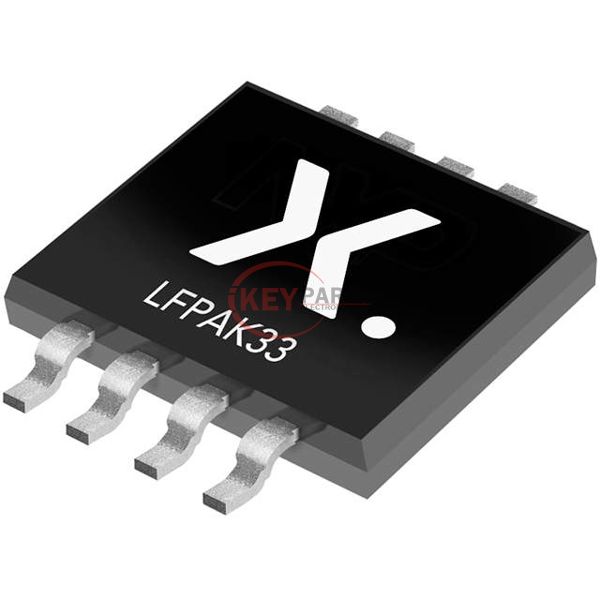

PXP1500-100QSJ

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PXP1500-100QSJ

Manufacturer :
Nexperia
Mfr. Part # :
PXP1500-100QSJ
Description
MOSFET P-CH 100V 700MA LFPAK33
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PXP1500-100QSJ PDF
PXP1500-100QSJ Tech Specifications
SeriesAutomotive, AEC-Q101, TrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C700mA (Ta), 1.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.5Ohm @ 700mA, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds159 pF @ 50 V
FET Feature-
Power Dissipation (Max)1.7W (Ta), 16.2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK33
Package / CaseSOT-1210, 8-LFPAK33 (5-Lead)
Request Quote Now
Request Quote Now

We can supply PXP1500-100QSJ, use the request quote form to request PXP1500-100QSJ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PXP1500-100QSJ. The price and lead time for PXP1500-100QSJ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PXP1500-100QSJ. We look forward to working with you to establish long-term relations of cooperation.
