TK65S04N1L,LXHQ

Enlarger

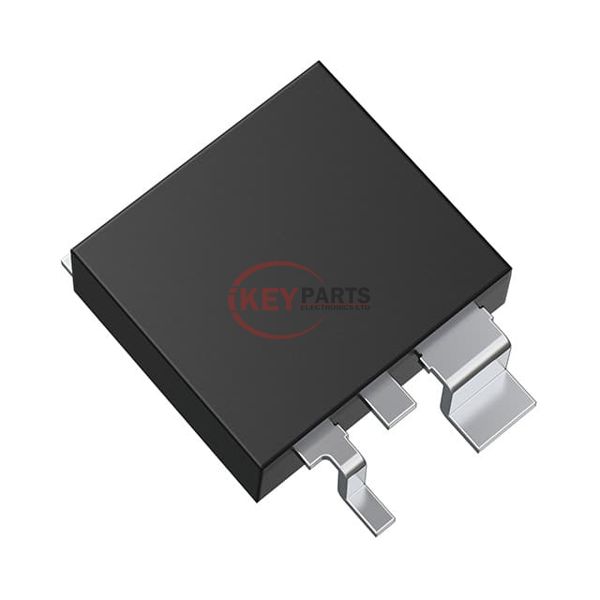

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TK65S04N1L,LXHQ

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TK65S04N1L,LXHQ
Description
MOSFET N-CH 40V 65A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TK65S04N1L,LXHQ PDF
TK65S04N1L,LXHQ Tech Specifications
SeriesU-MOSVIII-H
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C65A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.3mOhm @ 32.5A, 10V
Vgs(th) (Max) @ Id2.5V @ 300µA
Gate Charge (Qg) (Max) @ Vgs39 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2550 pF @ 10 V
FET Feature-
Power Dissipation (Max)107W (Tc)
Operating Temperature175°C
Mounting TypeSurface Mount
Supplier Device PackageDPAK+
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply TK65S04N1L,LXHQ, use the request quote form to request TK65S04N1L,LXHQ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TK65S04N1L,LXHQ. The price and lead time for TK65S04N1L,LXHQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TK65S04N1L,LXHQ. We look forward to working with you to establish long-term relations of cooperation.
