R5009FNJTL

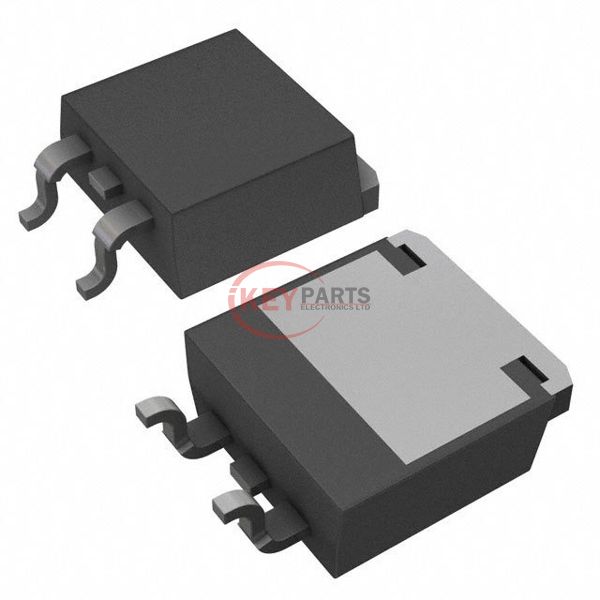

Enlarger

Lmages are for reference only See Product Specitications

ROHM Semiconductor R5009FNJTL

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
R5009FNJTL
Description
MOSFET N-CH 500V 9A LPTS
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
R5009FNJTL PDF
R5009FNJTL Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs840mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs18 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds630 pF @ 25 V
FET Feature-
Power Dissipation (Max)50W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLPTS
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply R5009FNJTL, use the request quote form to request R5009FNJTL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number R5009FNJTL. The price and lead time for R5009FNJTL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# R5009FNJTL. We look forward to working with you to establish long-term relations of cooperation.
