IRL520PBF-BE3

Enlarger

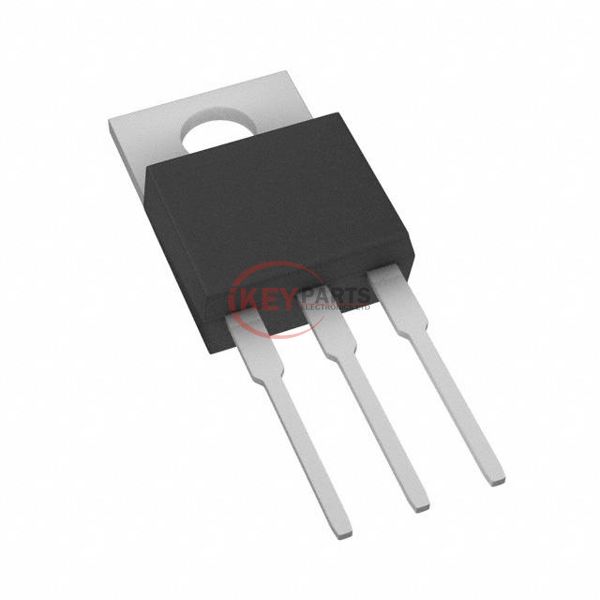

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRL520PBF-BE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRL520PBF-BE3
Description
MOSFET N-CH 100V 9.2A TO220AB
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRL520PBF-BE3 PDF
In Stock
1000
IRL520PBF-BE3 Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C9.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs270mOhm @ 5.5A, 5V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds490 pF @ 25 V
FET Feature-
Power Dissipation (Max)60W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply IRL520PBF-BE3, use the request quote form to request IRL520PBF-BE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRL520PBF-BE3. The price and lead time for IRL520PBF-BE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRL520PBF-BE3. We look forward to working with you to establish long-term relations of cooperation.
