PMN120ENEAX

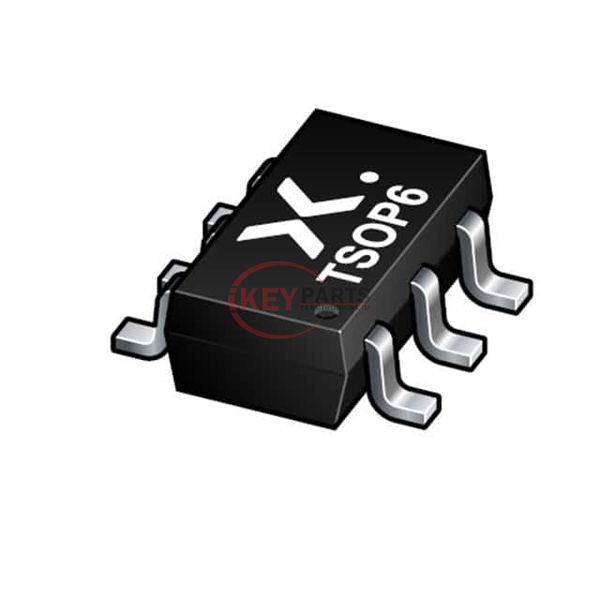

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PMN120ENEAX

Manufacturer :
Nexperia
Mfr. Part # :
PMN120ENEAX
Description
MOSFET N-CH 60V 2.5A 6TSOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMN120ENEAX PDF
PMN120ENEAX Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs123mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds196 pF @ 30 V
FET Feature-
Power Dissipation (Max)670mW (Ta), 7.5W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
Request Quote Now
Request Quote Now

We can supply PMN120ENEAX, use the request quote form to request PMN120ENEAX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMN120ENEAX. The price and lead time for PMN120ENEAX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMN120ENEAX. We look forward to working with you to establish long-term relations of cooperation.
