SSM3J46CTB(TPL3)

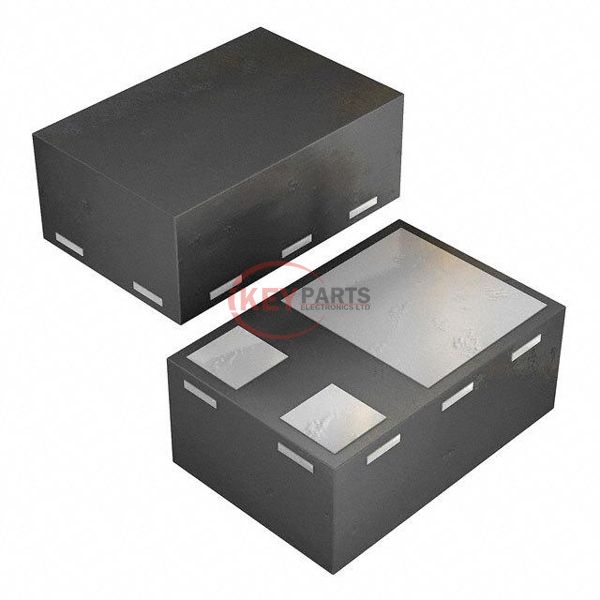

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation SSM3J46CTB(TPL3)

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
SSM3J46CTB(TPL3)
Description
MOSFET P-CH 20V 2A CST3B
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SSM3J46CTB(TPL3) PDF
In Stock
275
SSM3J46CTB(TPL3) Tech Specifications
SeriesU-MOSVI
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs103mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs4.7 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds290 pF @ 10 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageCST3B
Package / Case3-SMD, No Lead
Request Quote Now
Request Quote Now

We can supply SSM3J46CTB(TPL3), use the request quote form to request SSM3J46CTB(TPL3) pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SSM3J46CTB(TPL3). The price and lead time for SSM3J46CTB(TPL3) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SSM3J46CTB(TPL3). We look forward to working with you to establish long-term relations of cooperation.
