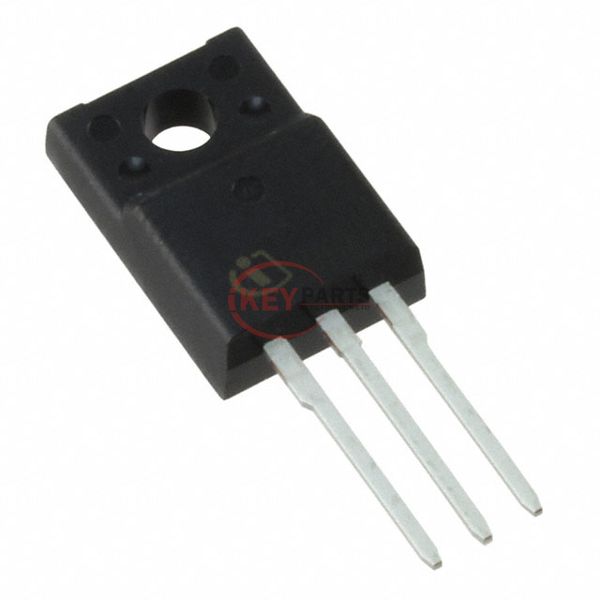

IPA80R1K2P7XKSA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPA80R1K2P7XKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPA80R1K2P7XKSA1
Description
MOSFET N-CH 800V 4.5A TO220
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPA80R1K2P7XKSA1 PDF
IPA80R1K2P7XKSA1 Tech Specifications
SeriesCoolMOS™ P7
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.2Ohm @ 1.7A, 10V
Vgs(th) (Max) @ Id3.5V @ 80µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds300 pF @ 500 V
FET Feature-
Power Dissipation (Max)25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO220 Full Pack
Package / CaseTO-220-3 Full Pack
Request Quote Now
Request Quote Now

We can supply IPA80R1K2P7XKSA1, use the request quote form to request IPA80R1K2P7XKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPA80R1K2P7XKSA1. The price and lead time for IPA80R1K2P7XKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPA80R1K2P7XKSA1. We look forward to working with you to establish long-term relations of cooperation.
