DMN2112SN-7

Enlarger

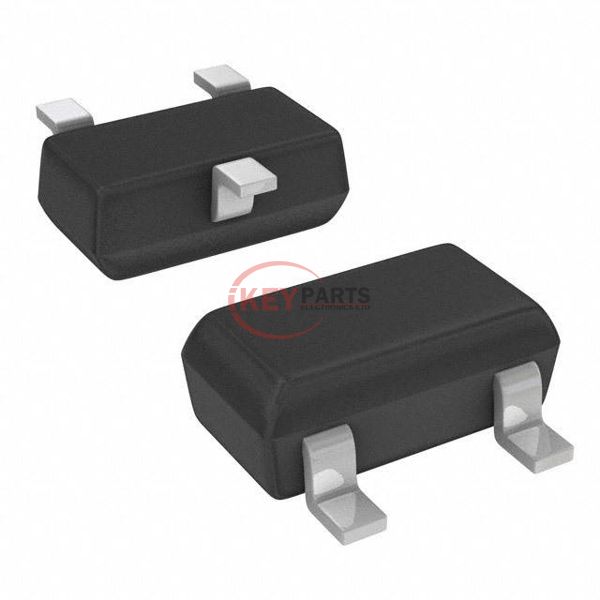

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMN2112SN-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMN2112SN-7
Description
MOSFET N-CH 20V 1.2A SC59-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMN2112SN-7 PDF
DMN2112SN-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs100mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds220 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-59-3
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply DMN2112SN-7, use the request quote form to request DMN2112SN-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN2112SN-7. The price and lead time for DMN2112SN-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN2112SN-7. We look forward to working with you to establish long-term relations of cooperation.
