IRL8114PBF

Enlarger

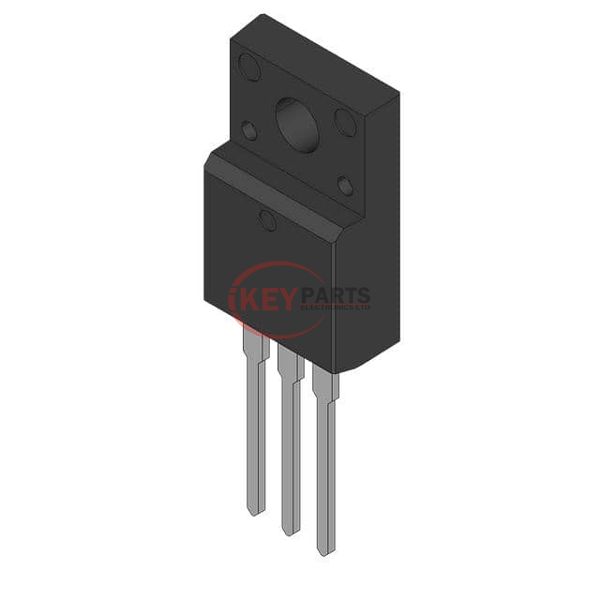

Lmages are for reference only See Product Specitications

Rochester Electronics IRL8114PBF

Manufacturer :
Rochester Electronics
Mfr. Part # :
IRL8114PBF
Description
MOSFET N-CH 30V 90A TO220AB
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRL8114PBF PDF
IRL8114PBF Tech Specifications
SeriesHEXFET®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs4.5mOhm @ 40A, 10V
Vgs(th) (Max) @ Id2.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs29 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2660 pF @ 15 V
FET Feature-
Power Dissipation (Max)115W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply IRL8114PBF, use the request quote form to request IRL8114PBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRL8114PBF. The price and lead time for IRL8114PBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRL8114PBF. We look forward to working with you to establish long-term relations of cooperation.
