STW13N60M2

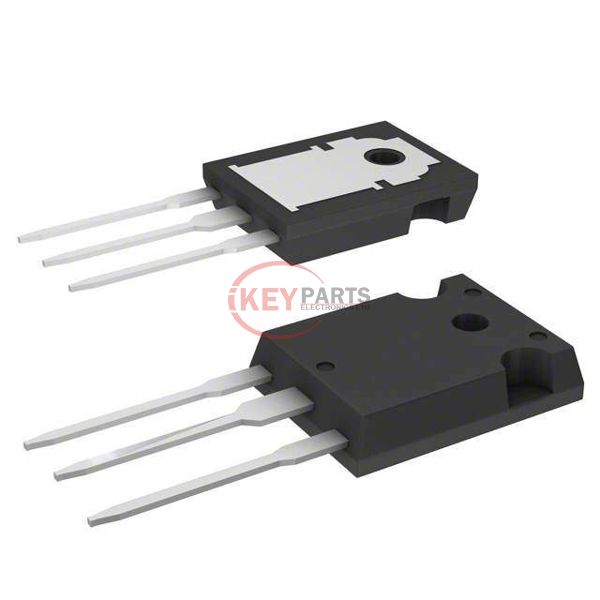

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STW13N60M2

Manufacturer :
STMicroelectronics
Mfr. Part # :
STW13N60M2
Description
MOSFET N-CH 600V 11A TO247
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STW13N60M2 PDF
In Stock
535
STW13N60M2 Tech Specifications
SeriesMDmesh™ II Plus
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs380mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds580 pF @ 100 V
FET Feature-
Power Dissipation (Max)110W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply STW13N60M2, use the request quote form to request STW13N60M2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STW13N60M2. The price and lead time for STW13N60M2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STW13N60M2. We look forward to working with you to establish long-term relations of cooperation.
