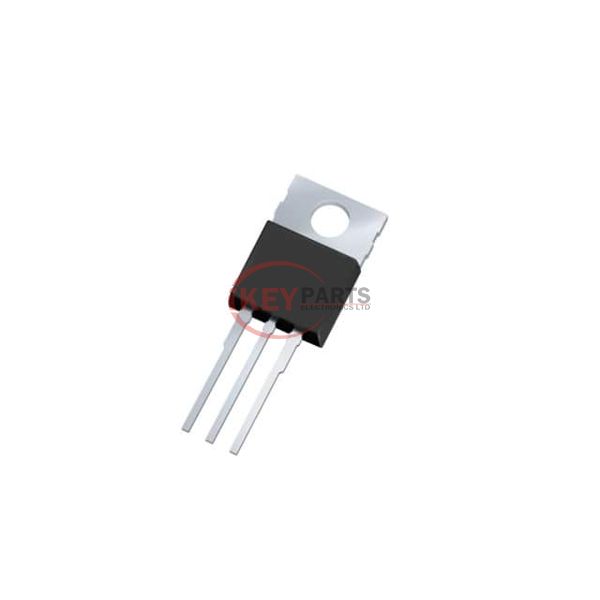

IPP80P03P4L04AKSA2

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPP80P03P4L04AKSA2

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPP80P03P4L04AKSA2
Description
MOSFET P-CH 30V 80A TO220-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPP80P03P4L04AKSA2 PDF
IPP80P03P4L04AKSA2 Tech Specifications
SeriesAutomotive, AEC-Q101, OptiMOS®-P2
PackageTube
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs4.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id2V @ 253µA
Gate Charge (Qg) (Max) @ Vgs160 nC @ 10 V
Vgs (Max)+5V, -16V
Input Capacitance (Ciss) (Max) @ Vds11300 pF @ 25 V
FET Feature-
Power Dissipation (Max)137W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO220-3-1
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply IPP80P03P4L04AKSA2, use the request quote form to request IPP80P03P4L04AKSA2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPP80P03P4L04AKSA2. The price and lead time for IPP80P03P4L04AKSA2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPP80P03P4L04AKSA2. We look forward to working with you to establish long-term relations of cooperation.
