2SK302500L

Enlarger

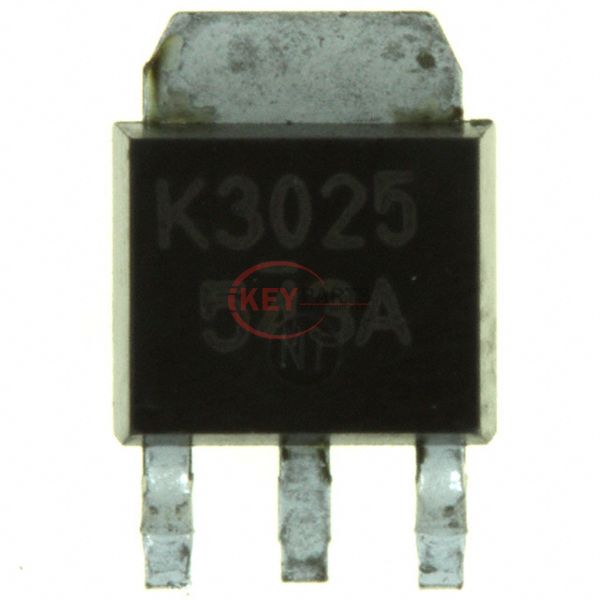

Lmages are for reference only See Product Specitications

Panasonic 2SK302500L

Manufacturer :
Panasonic
Mfr. Part # :
2SK302500L
Description
MOSFET N-CH 60V 30A U-DL
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SK302500L PDF
2SK302500L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs40mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1200 pF @ 10 V
FET Feature-
Power Dissipation (Max)1W (Ta), 25W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageU-DL
Package / CaseTO-252-4, DPak (3 Leads + Tab)
Request Quote Now
Request Quote Now

We can supply 2SK302500L, use the request quote form to request 2SK302500L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SK302500L. The price and lead time for 2SK302500L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SK302500L. We look forward to working with you to establish long-term relations of cooperation.
