R6009JND3TL1

Enlarger

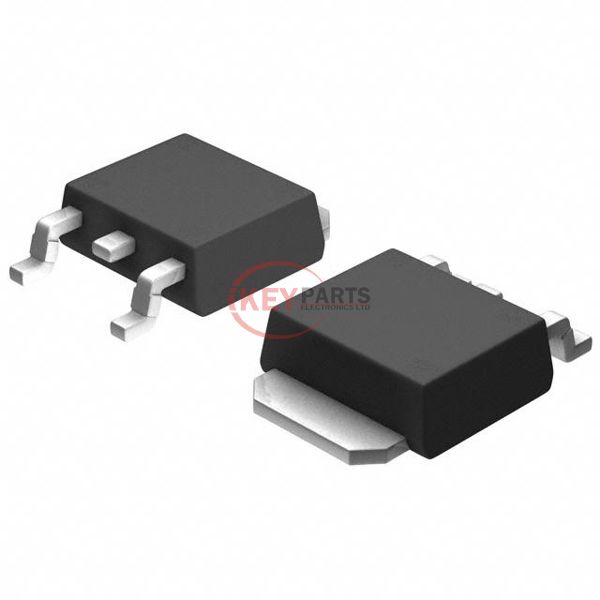

Lmages are for reference only See Product Specitications

ROHM Semiconductor R6009JND3TL1

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
R6009JND3TL1
Description
MOSFET N-CH 600V 9A TO252
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
R6009JND3TL1 PDF
R6009JND3TL1 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V
Rds On (Max) @ Id, Vgs585mOhm @ 4.5A, 15V
Vgs(th) (Max) @ Id7V @ 1.38mA
Gate Charge (Qg) (Max) @ Vgs22 nC @ 15 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds645 pF @ 100 V
FET Feature-
Power Dissipation (Max)125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply R6009JND3TL1, use the request quote form to request R6009JND3TL1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number R6009JND3TL1. The price and lead time for R6009JND3TL1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# R6009JND3TL1. We look forward to working with you to establish long-term relations of cooperation.
