Series | - | |
Package | Tape & Reel (TR)Cut Tape (CT) | |
Part Status | Active | |
FET Type | P-Channel | |
Technology | MOSFET (Metal Oxide) | |
Drain to Source Voltage (Vdss) | 20 V | |
Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) | |
Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V | |
Rds On (Max) @ Id, Vgs | 1.4Ohm @ 500mA, 4.5V | |
Vgs(th) (Max) @ Id | 950mV @ 250µA | |
Gate Charge (Qg) (Max) @ Vgs | 2.1 nC @ 4.5 V | |
Vgs (Max) | ±8V | |
Input Capacitance (Ciss) (Max) @ Vds | 43 pF @ 10 V | |
FET Feature | - | |
Power Dissipation (Max) | 360mW (Ta) | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

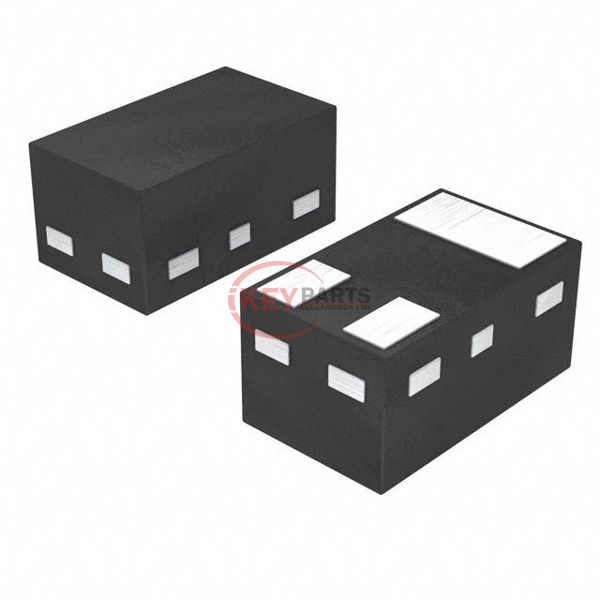

Supplier Device Package | DFN1006B-3 | |
Package / Case | 3-XFDFN |
We can supply PMZB950UPELYL, use the request quote form to request PMZB950UPELYL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMZB950UPELYL. The price and lead time for PMZB950UPELYL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMZB950UPELYL. We look forward to working with you to establish long-term relations of cooperation.
![]() |
