YJD80G06A-F1-0000

Enlarger

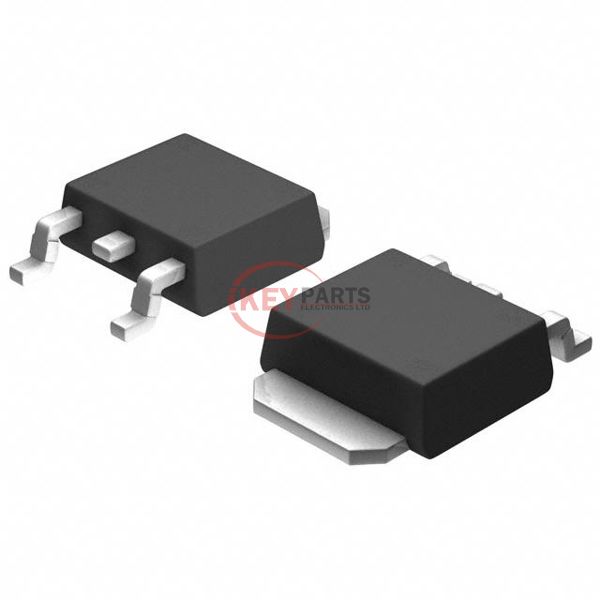

Lmages are for reference only See Product Specitications

YJD80G06A-F1-0000

Manufacturer :
Mfr. Part # :
YJD80G06A-F1-0000
Description
N-CH MOSFET 60V 80A TO-252
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
YJD80G06A-F1-0000 PDF
YJD80G06A-F1-0000 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs31 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1990 pF @ 30 V
FET Feature-
Power Dissipation (Max)85W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply YJD80G06A-F1-0000, use the request quote form to request YJD80G06A-F1-0000 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number YJD80G06A-F1-0000. The price and lead time for YJD80G06A-F1-0000 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# YJD80G06A-F1-0000. We look forward to working with you to establish long-term relations of cooperation.
