3401

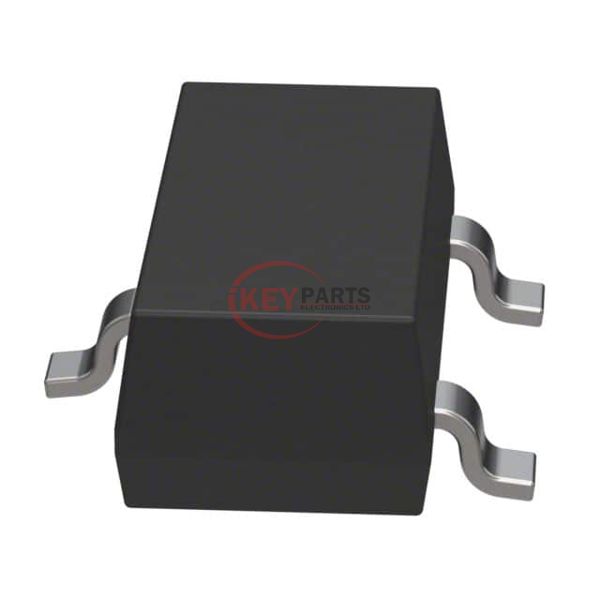

Enlarger

Lmages are for reference only See Product Specitications

3401

Manufacturer :
Mfr. Part # :
3401
Description
MOSFET P-CH 30V 4.2A SOT-23
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
3401 PDF
In Stock
5912
3401 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C4.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs55mOhm @ 4.2A, 10V
Vgs(th) (Max) @ Id1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.5 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds950 pF @ 15 V
FET FeatureStandard
Power Dissipation (Max)1.2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply 3401, use the request quote form to request 3401 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 3401. The price and lead time for 3401 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 3401. We look forward to working with you to establish long-term relations of cooperation.
