CSD16327Q3T

Enlarger

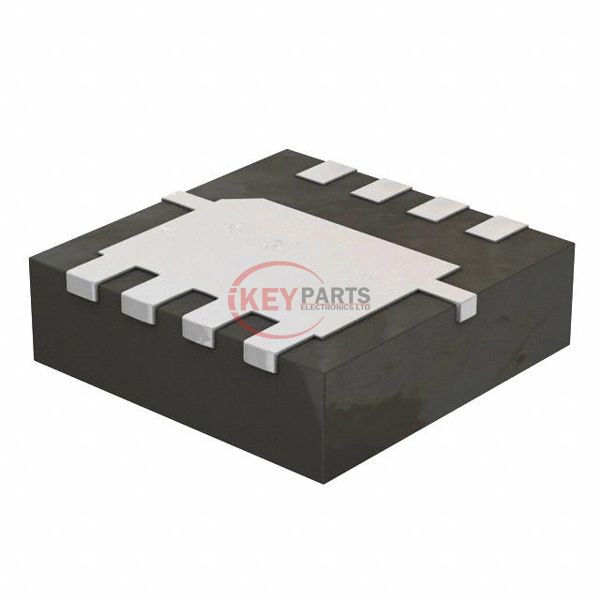

Lmages are for reference only See Product Specitications

Texas Instruments CSD16327Q3T

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD16327Q3T
Description
MOSFET N-CH 25V 60A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD16327Q3T PDF
CSD16327Q3T Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)3V, 8V
Rds On (Max) @ Id, Vgs4mOhm @ 24A, 8V
Vgs(th) (Max) @ Id1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.4 nC @ 4.5 V
Vgs (Max)+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds1300 pF @ 12.5 V
FET Feature-
Power Dissipation (Max)74W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON-CLIP (3.3x3.3)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply CSD16327Q3T, use the request quote form to request CSD16327Q3T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD16327Q3T. The price and lead time for CSD16327Q3T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD16327Q3T. We look forward to working with you to establish long-term relations of cooperation.
