CSD22206WT

Enlarger

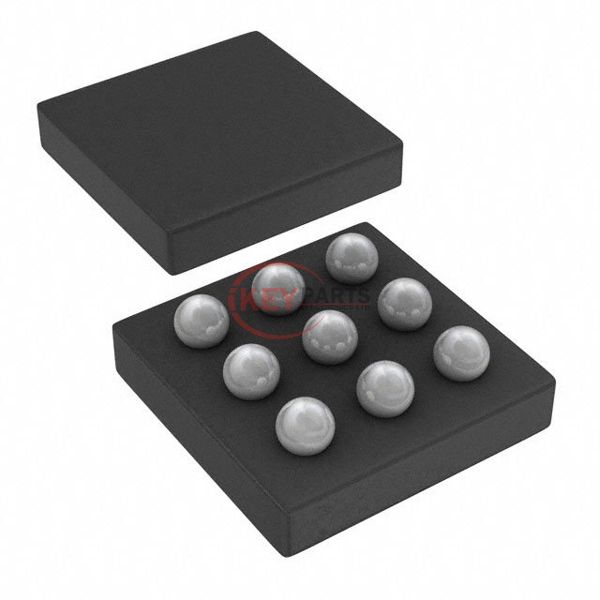

Lmages are for reference only See Product Specitications

Texas Instruments CSD22206WT

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD22206WT
Description
MOSFET P-CH 8V 5A 9DSBGA
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD22206WT PDF
CSD22206WT Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)8 V
Current - Continuous Drain (Id) @ 25°C5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs5.7mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs14.6 nC @ 4.5 V
Vgs (Max)-6V
Input Capacitance (Ciss) (Max) @ Vds2275 pF @ 4 V
FET Feature-
Power Dissipation (Max)1.7W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package9-DSBGA (1.5x1.5)
Package / Case9-UFBGA, DSBGA
Request Quote Now
Request Quote Now

We can supply CSD22206WT, use the request quote form to request CSD22206WT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD22206WT. The price and lead time for CSD22206WT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD22206WT. We look forward to working with you to establish long-term relations of cooperation.
