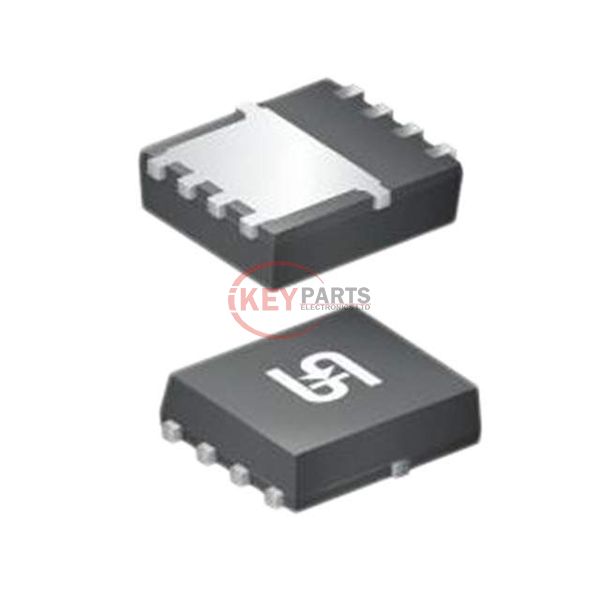

TSM038N03PQ33 RGG

Enlarger

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM038N03PQ33 RGG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM038N03PQ33 RGG
Description
MOSFET N-CH 30V 78A 8PDFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM038N03PQ33 RGG PDF
In Stock
4499
TSM038N03PQ33 RGG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.8mOhm @ 19A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2557 pF @ 15 V
FET Feature-
Power Dissipation (Max)39W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PDFN (3x3)
Package / Case8-PowerWDFN
Request Quote Now
Request Quote Now

We can supply TSM038N03PQ33 RGG, use the request quote form to request TSM038N03PQ33 RGG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM038N03PQ33 RGG. The price and lead time for TSM038N03PQ33 RGG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM038N03PQ33 RGG. We look forward to working with you to establish long-term relations of cooperation.
