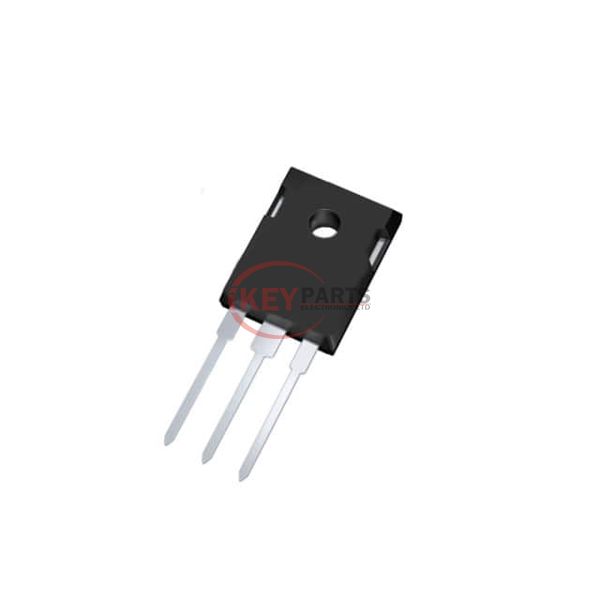

IPW90R120C3XKSA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPW90R120C3XKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPW90R120C3XKSA1
Description
MOSFET N-CH 900V 36A TO247-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPW90R120C3XKSA1 PDF
IPW90R120C3XKSA1 Tech Specifications
SeriesCoolMOS™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)900 V
Current - Continuous Drain (Id) @ 25°C36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs120mOhm @ 26A, 10V
Vgs(th) (Max) @ Id3.5V @ 2.9mA
Gate Charge (Qg) (Max) @ Vgs270 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6800 nF @ 100 V
FET Feature-
Power Dissipation (Max)417W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO247-3
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply IPW90R120C3XKSA1, use the request quote form to request IPW90R120C3XKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPW90R120C3XKSA1. The price and lead time for IPW90R120C3XKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPW90R120C3XKSA1. We look forward to working with you to establish long-term relations of cooperation.
