IPD90P03P4L04ATMA2

Enlarger

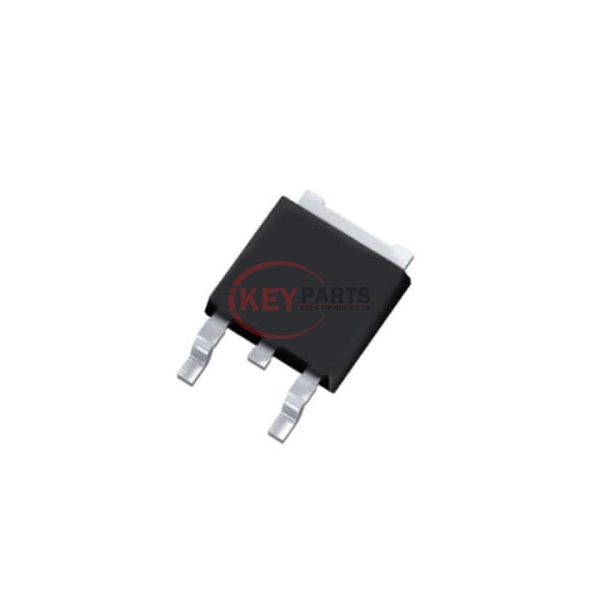

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPD90P03P4L04ATMA2

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPD90P03P4L04ATMA2
Description
MOSFET P-CH 30V 90A TO252-31
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPD90P03P4L04ATMA2 PDF
IPD90P03P4L04ATMA2 Tech Specifications
SeriesAutomotive, AEC-Q101, OptiMOS®-P2
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs4.1mOhm @ 90A, 10V
Vgs(th) (Max) @ Id2V @ 253µA
Gate Charge (Qg) (Max) @ Vgs160 nC @ 10 V
Vgs (Max)+5V, -16V
Input Capacitance (Ciss) (Max) @ Vds11300 pF @ 25 V
FET Feature-
Power Dissipation (Max)137W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3-11
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply IPD90P03P4L04ATMA2, use the request quote form to request IPD90P03P4L04ATMA2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPD90P03P4L04ATMA2. The price and lead time for IPD90P03P4L04ATMA2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPD90P03P4L04ATMA2. We look forward to working with you to establish long-term relations of cooperation.
