TSM60NB1R4CH C5G

Enlarger

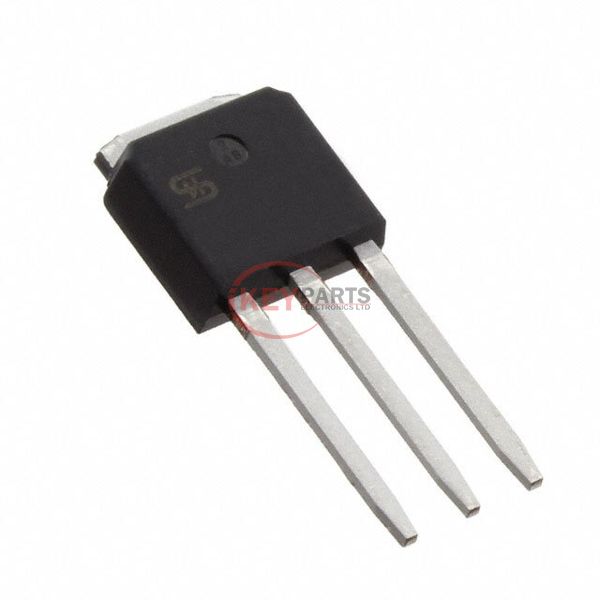

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM60NB1R4CH C5G

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM60NB1R4CH C5G
Description
MOSFET N-CHANNEL 600V 3A TO251
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM60NB1R4CH C5G PDF
TSM60NB1R4CH C5G Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.4Ohm @ 900mA, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.12 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds257.3 pF @ 100 V
FET Feature-
Power Dissipation (Max)28.4W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-251 (IPAK)
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
Request Quote Now
Request Quote Now

We can supply TSM60NB1R4CH C5G, use the request quote form to request TSM60NB1R4CH C5G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM60NB1R4CH C5G. The price and lead time for TSM60NB1R4CH C5G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM60NB1R4CH C5G. We look forward to working with you to establish long-term relations of cooperation.
