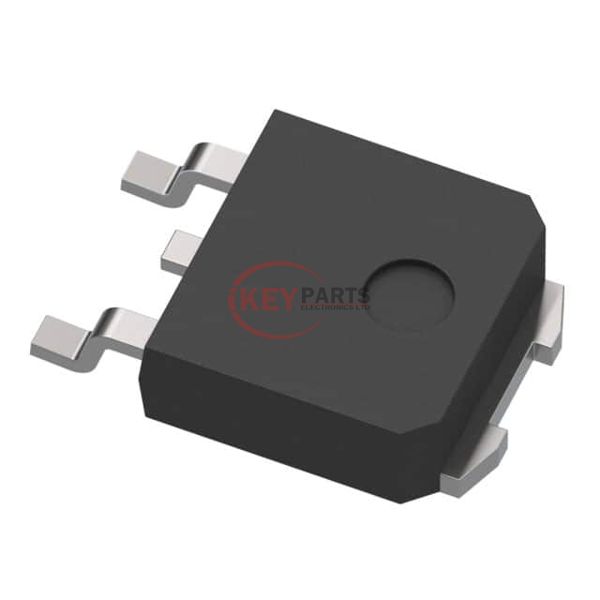

STD80N6F7

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STD80N6F7

Manufacturer :
STMicroelectronics
Mfr. Part # :
STD80N6F7
Description
MOSFET N-CH 60V 40A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STD80N6F7 PDF
STD80N6F7 Tech Specifications
SeriesSTripFET™ F7
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1600 pF @ 30 V
FET Feature-
Power Dissipation (Max)100W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply STD80N6F7, use the request quote form to request STD80N6F7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STD80N6F7. The price and lead time for STD80N6F7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STD80N6F7. We look forward to working with you to establish long-term relations of cooperation.
