TSM160P02CS RLG

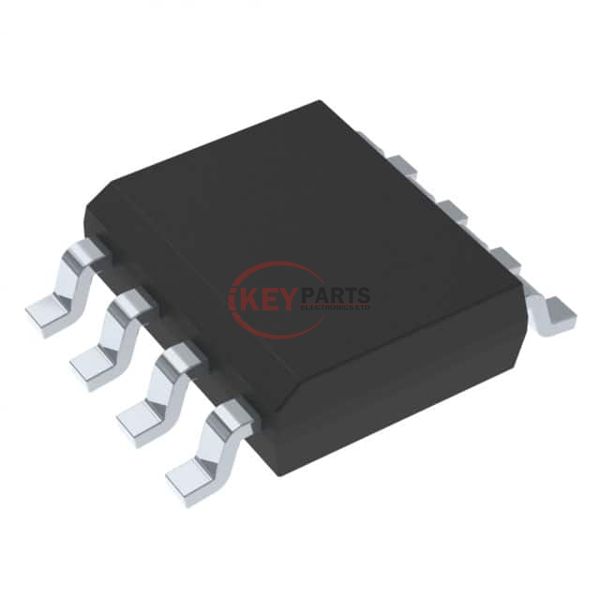

Enlarger

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM160P02CS RLG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM160P02CS RLG
Description
MOSFET P-CHANNEL 20V 11A 8SOP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM160P02CS RLG PDF
TSM160P02CS RLG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs16mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs27 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds2320 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOP
Package / Case8-SOIC (0.154", 3.90mm Width)
Request Quote Now
Request Quote Now

We can supply TSM160P02CS RLG, use the request quote form to request TSM160P02CS RLG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM160P02CS RLG. The price and lead time for TSM160P02CS RLG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM160P02CS RLG. We look forward to working with you to establish long-term relations of cooperation.
