TPH14006NH,L1Q

Enlarger

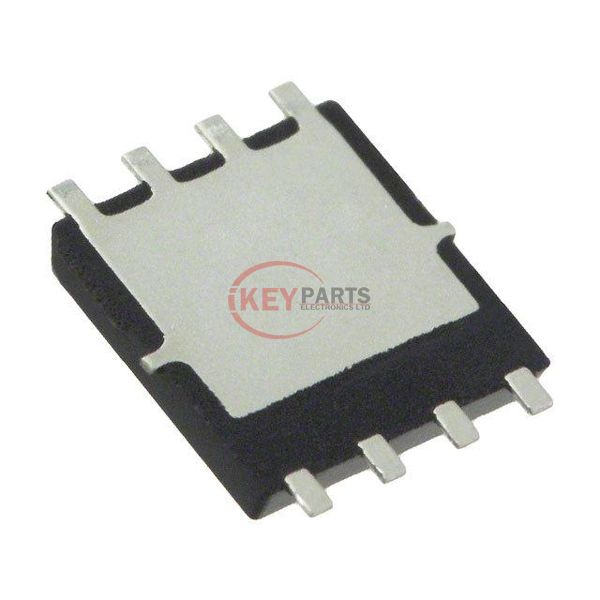

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TPH14006NH,L1Q

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TPH14006NH,L1Q
Description
MOSFET N CH 60V 14A 8-SOP ADV
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPH14006NH,L1Q PDF
In Stock
1894
TPH14006NH,L1Q Tech Specifications
SeriesU-MOSVIII-H
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C14A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6.5V, 10V
Rds On (Max) @ Id, Vgs14mOhm @ 7A, 10V
Vgs(th) (Max) @ Id4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs16 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1300 pF @ 30 V
FET Feature-
Power Dissipation (Max)1.6W (Ta), 32W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOP Advance (5x5)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply TPH14006NH,L1Q, use the request quote form to request TPH14006NH,L1Q pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPH14006NH,L1Q. The price and lead time for TPH14006NH,L1Q depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPH14006NH,L1Q. We look forward to working with you to establish long-term relations of cooperation.
