CSD22205L

Enlarger

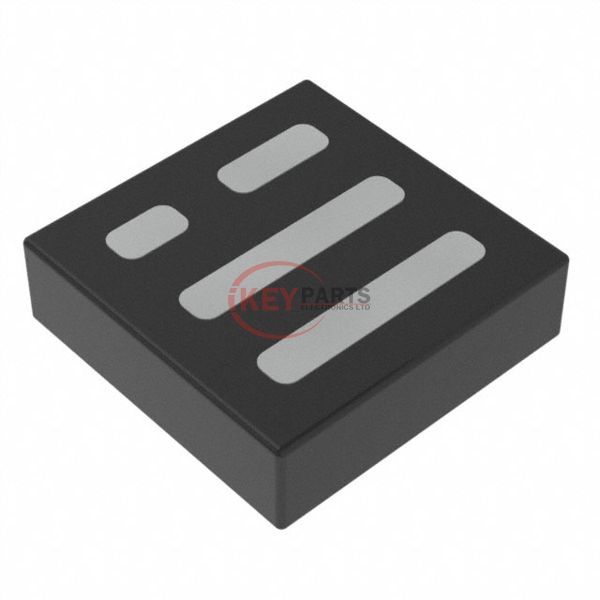

Lmages are for reference only See Product Specitications

Texas Instruments CSD22205L

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD22205L
Description
MOSFET P-CH 8V 7.4A 4PICOSTAR
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD22205L PDF
In Stock
633
CSD22205L Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)8 V
Current - Continuous Drain (Id) @ 25°C7.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs9.9mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.5 nC @ 4.5 V
Vgs (Max)-6V
Input Capacitance (Ciss) (Max) @ Vds1390 pF @ 4 V
FET Feature-
Power Dissipation (Max)600mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-PICOSTAR
Package / Case4-XFLGA
Request Quote Now
Request Quote Now

We can supply CSD22205L, use the request quote form to request CSD22205L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD22205L. The price and lead time for CSD22205L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD22205L. We look forward to working with you to establish long-term relations of cooperation.
