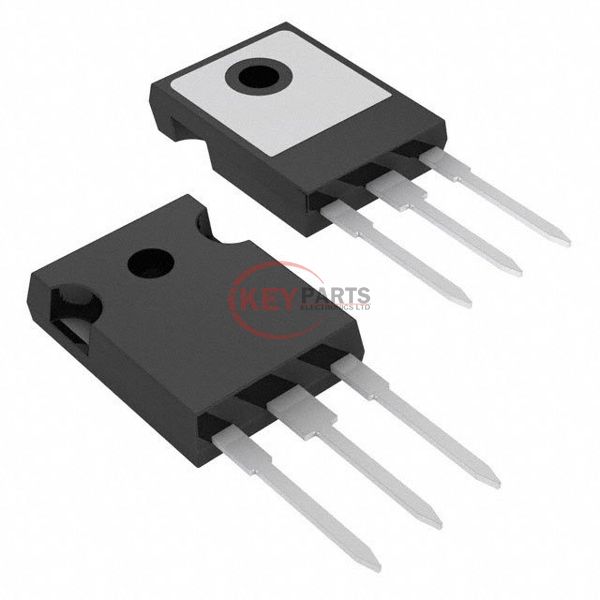

SIHG22N50D-E3

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SIHG22N50D-E3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SIHG22N50D-E3
Description
MOSFET N-CH 500V 22A TO247AC
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SIHG22N50D-E3 PDF
SIHG22N50D-E3 Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs230mOhm @ 11A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs98 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1938 pF @ 100 V
FET Feature-
Power Dissipation (Max)312W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247AC
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply SIHG22N50D-E3, use the request quote form to request SIHG22N50D-E3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SIHG22N50D-E3. The price and lead time for SIHG22N50D-E3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SIHG22N50D-E3. We look forward to working with you to establish long-term relations of cooperation.
